Generating Good Thumbnails / Previews using Tableau Server REST API

The Tableau REST API has very convenient endpoints for retrieving a Workbook or View Preview Image. Unfortunately, there are many conditions where Tableau Server itself doesn’t generate anything other than the gray “User Filtered View” thumbnail. This post describes a process for using the full Image (not preview) REST API endpoints to generate attractive thumbnails images.

One of the conditions that results in a gray generic thumbnails is any workbook that is connected to a Published Data Source that has Row Level Security set up through Data Source Filters.

The basic workflow is:

  1. Request all of the Views from a Workbook (or the Default View if you only need thumbnails at the Workbook level) for one particular user, who you know has enough data access to result in a good looking thumbnail
  2. Call the actual Image endpoints (instead of the Thumbnail / Preview endpoints) for every View you need
  3. Reduce the images to thumbnail size
  4. Cache the thumbnails for efficient retrieval by your embedded web application

(more…)

Web Services / REST APIs as a Data Source in Tableau: A PostgreSQL/Python solution

The trend toward wrapping together data and security filtering into RESTful web services has only increased in the past few years, and for a lot of good reasons. If the REST API is optimized to return very quickly based on a set of filtering parameters, the performance alone can justify the architecture. However, Tableau is planning to do more with the result set than simply display it directly — Tableau is ready to do deep analysis and discover new insights. Because of this, Tableau’s VizQL engine needs something it can query in many different ways as the basis for a data source connection.

How can we bridge the gap between a JSON (or XML, if anyone still does that) object response and a relational query engine?

What if I told you THIS was all that was necessary on the Tableau Desktop side to build a data source that acts as a “live” connection to a web service?:

Accessing the PL/Python Function in Tableau

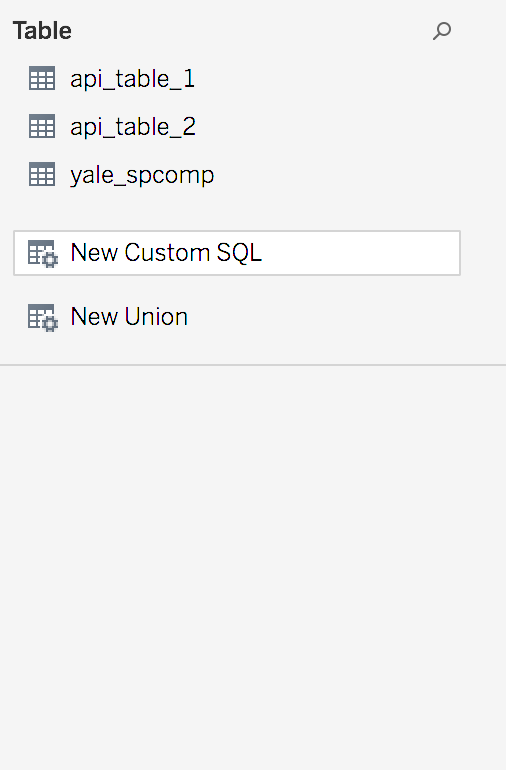

Custom SQL in Tableau



Connect to the PostgreSQL database in Tableau Desktop using whatever credentials you created for an end user.

Then on the Data Connection screen, you’ll find onĀ New Custom SQL on the left:

If you drag that out, then the dialog to define the Custom SQL query appears:

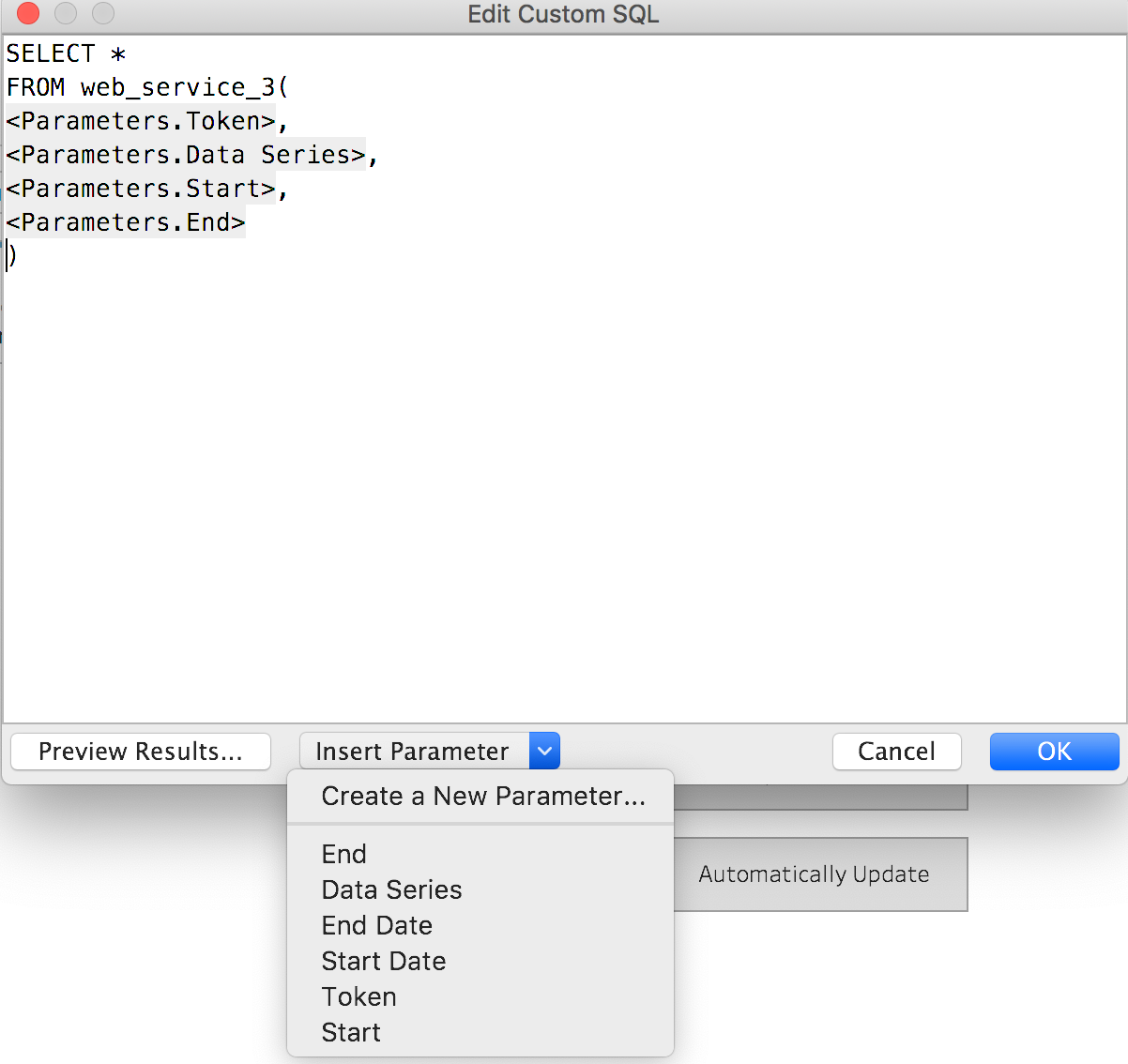

Custom SQL dialog

As you can see, the query is just SELECT * FROM function_name( arguments ), with whatever parameters you want to attach. You can create new parameters right from this dialog box, then put them in place. Make sure to give sensible defaults, and probably most should default to an empty string so that someone can only access if they have the right tokens / etc.

How is this possible?

There’s a whole lot of setup on the PostgreSQL side, but the payoff is the simplicity of the setup in Tableau.

The solution is based on the architecture originally laid out here, but I’ve put together a Dockerfile which builds out a PostgreSQL database ready for your custom set of functions which will dynamically call a RESTful Web Service based on Tableau’s parameters.

(more…)

tableau_tools 5.0 : Python 3 for 2020 (and so much more!)

Just in time for 2020, tableau_tools has gone a thorough upgrade to bring it into the Python 3 era. While the 4 series of tableau_tools was Python 3 compatible, tableau_tools 5.0 and beyond are Python 3 native, dropping support for 2.7 entirely. It also drops support for any version of Tableau before 10.3, which matches Tableau’s official support policy at this point.

In the process, the source has also been completely refactored for anyone who wants to join in and help with the project or just is tracking down a bug or strange behavior. It’s far easier now to find where everything is implemented, understand the logic of it, and make suggestions or changes.

Update to Python 3.6 or better, and then use PIP to install the latest version from PyPi. For all the good details, read more…

(more…)

The Missing Link – Putting a Hyper File from the Hyper API into a TDSX or TWBX File

The Tableau Hyper API is an amazingly powerful tool for building out Extracts that, for whatever reason, cannot be built or maintained using the standard Tableau Server extract refresh process. You can publish a Hyper file directly to a Tableau Server, but there are several drawbacks:

  • Tableau Server will build out an automatic TDS file, taking a rough guess at any type of metadata categorization (Measure vs. Dimensions, Hierarchies, Geographic info, etc.)
  • The only use for this data source will be creating Ad Hoc reports using Web Edit (or hoping someone in Desktop now knows that it exists). You can’t integrate it easily in an existing Workbook
  • It only works with Single-Table Extracts, and in older versions of Tableau, the single table must be named “Extract” or you will encounter errors.

What is missing is a TDS file to pair up with the Hyper file, describing the exact metadata that you want to go along with the Extracted data. In this article, I’ll describe a workflow that result in a fully controlled TDSX file with a newly generated Hyper file.

(more…)

“Live” Web Services Connections in Tableau

Many organizations have begun standardizing on a “Web Services” layer for access to reporting data, often with a restriction on directly connecting to the underlying data stores that power the Web Service responses. In the majority of cases, the result is a set of RESTful endpoints returning JSON object data, but for the purposes of this article, any variation that involves HTTP requests and responses in a “web-friendly” response format (JSON / XML) will be referred to as “Web Services”.

There are many reasons for adopting this architecture, and I’m here neither to recommend or pass judgement. There is one major implication to this architectural decision though — BI systems that expect a relational model and SQL-compliant querying capabilities do not have a native, natural way to handle these data responses. Tableau falls in this category (I don’t care about any others, but it’s not an issue exclusive to Tableau).

Tableau provides a Web Data Connector technology which helps individual analysts retrieve data from Web Service Data Sources, but current design does not account for data sets to vary depending on the user looking at the workbook, something essential for scalable and secure Tableau Server reports.

However, Tableau’s ability to connect live to a wide range of relational data sources allows us to construct an alternate architecture for accessing Web Services responses “live”:

Full Embedded Web Services Architecture

(more…)

Keeping Web Edit Content Private

Tableau’s behavior for saving content when using Web Edit follows these rules:

  1. If you are the Content Owner, you can Save or Save As
  2. If you are not the Content Owner, you can Save As

Save As is only allowed to Projects where you (or the groups you belong to) have a Save permission set to “Allow”.

Since a newly Saved Workbook will take the Default Permissions of the Project it saves into, if other people also have permissions for that same Project, they will also be able to access that content. This leads to several different strategies for controlling the privacy of content created through Save As.

Possible solutions:

  • A Project Per Team / Group
  • A Project Per User
  • A REST API script that “fixes” Permissions
  • Publishing a New Copy rather than Save As

(more…)

Session-level Single-Sign On

Tableau Server doesn’t currently (as of 2018.2) have a dedicated “service” for authentication when doing Single Sign-On. Instead, a Tableau Server session is established the first time you load a Viz using a given SSO method. Whether using Trusted Authentication, Windows Authentication, or SAML, when the first viz loads, that is when the authentication actually happens, and after that point, there is a Tableau Server session cookie, so that the authentication doesn’t have to happen continuously.

Traditionally, particularly for Trusted Authentication, instructions have been given to request and send a new ticket for each load of any Viz. But this introduces extra, unnecessary authentication requests, and can even lead to a “race condition” when you are loading multiple Vizes in the same page, where sessions are being created and overriding each other as separate tickets are processing at the same time. This same issue can affect ANY of the SSO methods when loading multiple vizes.

The Hidden / Empty Viz Solution

As mentioned above, once the first Viz has been authenticated, there is a Tableau Server Sesssion cookie that will be used for all subsequent requests. So to create a “login” service, we simply need to login as quickly as possible to a Viz. This is very similar to what you need to do for Trusted Authentication SSO into the full Tableau Server UI.

The simplest Viz possible is all we need (literally, a single filter on a page using a totally blank Data Source can be used). Every user is the Tableau Server should have access to this Viz. As soon as the user is authenticated into the main application, you should load the simple viz — if using Trusted Authentication, this request should include the trusted ticket. You can hide the Viz div under something or out of sight (the div shouldn’t actually have visibility:hidden though because some browsers don’t like that prior to the Viz being initialized), so that the user doesn’t see this load process. Or do it quickly in a page that then redirects to the next page. It’s up to you.

For even more performance, you can request the PNG version of the Tableau viz, which will return an image instead of loading the full JS viz object. All that is required is adding “.png” to the ending of the Viz location you would be loading, for it to be an image request. Given that ability, you can actually redeem the trusted ticket completely in JavaScript prior to initializing the Viz using the Tableau JS API. You can do this anywhere in the site once you know who the user is; redeeming the Trusted Ticket will establish the Tableau Server session and any subsequent viz renderings will use that session.:

<pre>// One way to redeem a trusted ticket would be a .png request
function redeemTrustedPng(tableauServerBaseUrl, siteContentUrl, workbook, view, trustedTicket){

    if(siteContentUrl === null){
        redemptionUrl = tableauServerBaseUrl + "/trusted/" + trustedTicket + "/views/" + workbook + "/" + view + ".png";
    }
    else{
        redemptionUrl = tableauServerBaseUrl + "/trusted/" + trustedTicket + "/t/" + siteContentUrl + "/views/" + workbook + "/" + view + ".png";
    }
    // Now load the image, but not actual place in the visible part of the DOM
    var redemptionImg = new Image();
    redemptionImg.onload =  function () {
        console.log("Trusted ticket redeemed!")
        trustedImageLoadResponse(true);

    }
    redemptionImg.onerror = function () {
        console.log("Trusted ticket image retrieval failed");
        trustedImageLoadResponse(false);
    }

    // Actually load the image here
    redemptionImg.src = redemptionUrl;
}

function trustedImageLoadResponse(response){
    // This is a stub for the page itself to do something with

}</pre>

Session Timeout with Trusted Tickets

The one advantage of continually sending Trusted Tickets is that the Tableau Server session is continually extending as each ticket is sent. If you only do one Trusted Ticket to establish a session, how do you keep from timing out and sending the user to the Tableau Server sign-in box? The answer is to set your own timer cookie, and whenever it times out, reestablish the session using the Empty Viz. You shouldn’t need to do this with SAML or AD, because they will automatically call out and reestablish their sessions, but you could.

Sign-Out

Tableau Server sessions will end naturally based on the value you have set for them using tabadmin / TSM. Actually forcing a Tableau Session to sign-out is a little tricky — recent versions of Tableau Server understand a SAML IdP Signout, or you could try to use the REST API to signout, but in the latest version of Tableau Server, the REST API technique requires reverting to a simpler, less secure type of session cookie.
